The Race Lite Pro model shares many of the same key components and spec as the Expert XL model but have been sized up slightly. 20.75" top tube frame, 175mm cranks, 8" rise bars and wider rims/tires all contribute to making this platform fit the needs of racers who have grown beyond the Expert XL size.
Features
・6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
・Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs
・2-pc Forged Alloy w/ 24mm Hollow Spindle
・20" Alloy 36h, Double Wall
・36h Alloy Sealed-Bearing w/Disc 16T Cassette Rear
・Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
| FRAMESET | |
|---|---|
| Frame | 6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 20.75" top tube. |
| Fork | Full chromoly 1 1/8" Threadless Steerer w/tapered legs |
| Colors | Blue |
| DRIVETRAIN | |
| Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle - 170mm - 44t Alloy Chainring |
| Bottom Bracket | Press-Fit BB86, Sealed Bearing |
| Sprocket | 44t Alloy Chainring |
| Gearing | 44/16 |
| Pedals | Alloy DX, 9/16" |
| Chain | KMC Z33 1/2 X 3/32" |
| Cassette | 16t Cassette |
| WHEELS | |
| Tires | Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear |
| Front Hub | 36h Alloy Sealed-Bearing |
| Rear Hub | 36h sealed disc 16T cassette rear |
| Rims | 24" Alloy 36h, Double Wall |
| BRAKING SYSTEM | |
| Brake | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
| Brake Lever | Promax XL-373 Two Finger |
| OTHER COMPONENTS | |
| Grips | Micro-Knurl Grip |
| Handlebar | Haro full chromoly, 8" Rise |
| Stem | Forged Alloy Top-Load, 45mm reach |
| Headset | 1-1/8"" Sealed Threadless |
| Seat | Haro Slim Plastic Pivotal |
| Seat Post | Alloy Pivotal, 27.2mm |
| Seat Post Clamp | Alloy, 31.8mm |

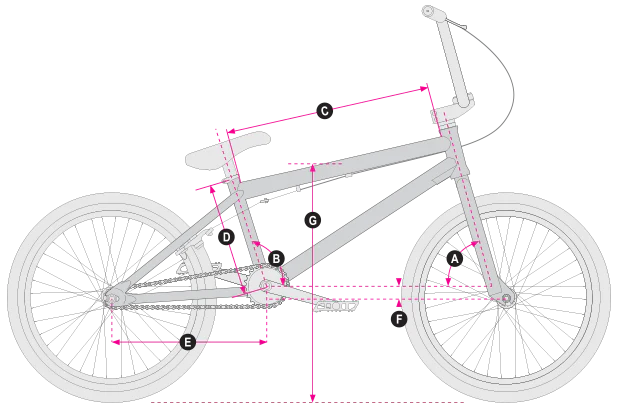

Size 20
A. Head Angle 74°
B. Seat Angle 72°
C. Top Tube 20.75 (527mm)
D. Seat Tube 9.4" (240mm)
E. Chainstay 14.3" (364mm)
F. BB Height 11.5" (293mm)
G. Stand Over 22.1" (562mm)
